China Manufacture Wheel Hub Bearing DAC34620037
High performance sealing ring
Low friction torque
High load capacity
Light Weight
long-life
Low noise
ABS technology
DAC34620037 Wheel Hub Bearing Technical Specifications

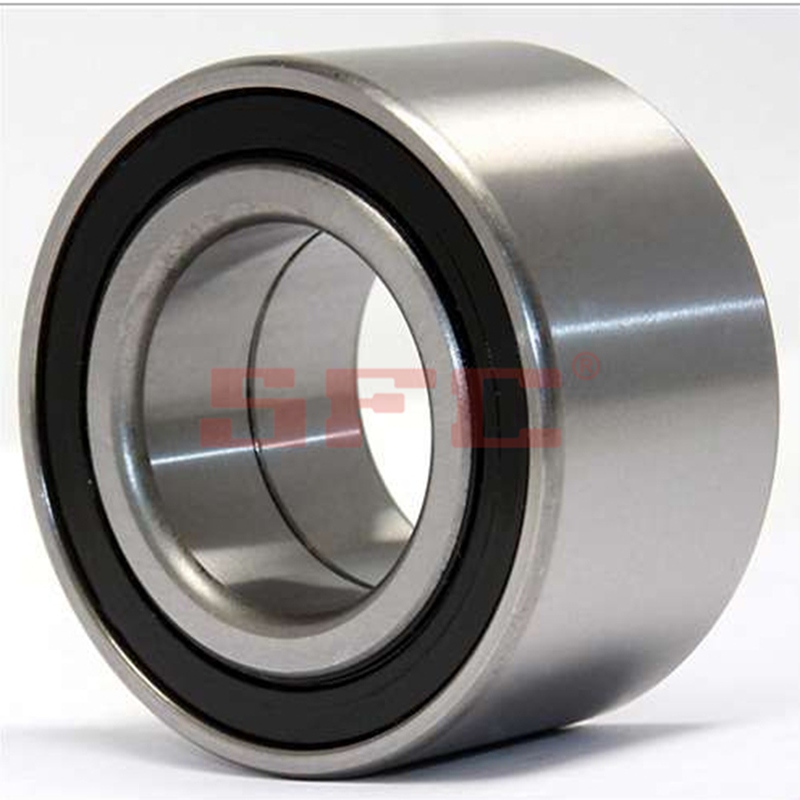

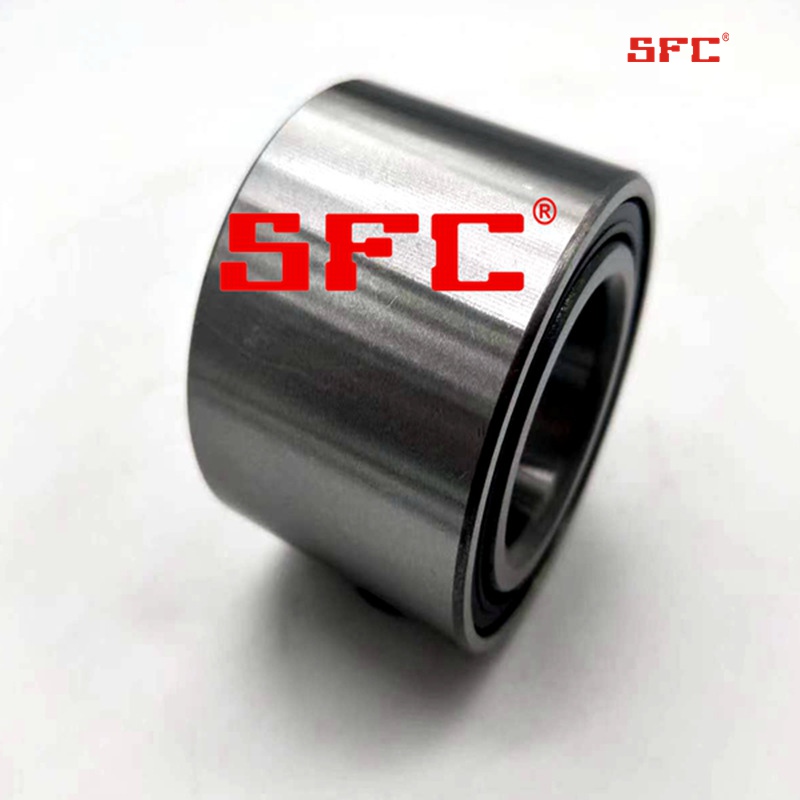

DAC34620037 is a double-row angular contact ball bearing hub unit made in China, specifically designed for automotive hub systems. Its core parameters are as follows:
Origin: Manufactured in China
Core Specifications:
Size | |
Bore Diameter (d) | 34 mm |
Outer Diameter (D) | 62 mm |
Width (B/C) | 37 mm |
Weight | 0.41–0.42 kg |
Precision Grade | P5 (High-Precision Standard) |
Operating Temp. | ≤120°C (Standard Grease) |
Design Features & Advantages
Integrated Structure: Combines dual bearing functions into a single unit, eliminating clearance adjustment during installation. Reduces assembly time and production costs.
High Load Capacity: Simultaneously handles axial and radial loads. Static/dynamic load ratings exceed conventional designs (exact values vary by manufacturer; refer to supplier datasheets).
Sealed & Maintenance-Free: Pre-lubricated with high-temp grease and integrated seals. No external hub seal required, enabling lifetime service.
Lightweight & Compact: Optimized design (0.41 kg) meets modern vehicles’ weight-saving and space efficiency demands.
| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | Height | Seal | Use | H2 | Weight (KG) |
|---|---|---|---|---|---|---|---|
| DAC34620037 | 34 | 62 | 37 | C | Audi,Volkswagen | ||
| DAC34640034 | 34 | 64 | 34 | D | Honda JAZZAA1.2 B4-86 | 34 | 0.43 |
| DAC34640037 | 34 | 64 | 37 | B | Lada,GM.SPARK (11>), AVEO (08>), SUZI., SWIFT, OPTIMA | 37 | 0.47 |
| DAC34660037 | 34 | 66 | 37 | C | GM CHEVY (TODOS), (94-12), MONZA (93-01), PICK-UP (99-03), Accord，Corsa | 37 | 0.5 |
| DAC34670037 | 34 | 67 | 37 | C | 37 | 0.44 | |
| DAC34680037 | 34 | 68 | 38 | 37 | 0.55 | ||
| DAC356180040 | 35 | 61.8 | 40 | E | 40 | 0.43 | |
| DAC35620031 | 35 | 62 | 31 | A | 31 | 0.35 | |
| DAC35620040 | 35 | 62 | 40 | E | 40 | 0.45 | |
| DAC35640037 | 35 | 64 | 37 | B | Daihastu | 37 | 0.41 |
| DAC35650035 | 35 | 65 | 35 | C | Kia Pride,Renault | 35 | 0.4 |
| DAC35650037 | 35 | 65 | 37 | C | Subaru | 37 | 0.51 |
| DAC35660032 | 35 | 66 | 32 | C | Citroen | 32 | 0.42 |
| DAC35660033 | 35 | 66 | 33 | C | Fiat,TIPO1.4 | 33 | 0.43 |
| DAC35660037 | 35 | 66 | 37 | C | VW. GOLF (88-85), JETTA (88-85) | 37 | 0.48 |
| DAC35670042 | 35 | 67 | 42 | D | 42 | 0.45 | |
| DAC35680037 | 35 | 68 | 37 | C | Fiat,Lancia，Seat,VOLVO,Zastava | ||
| DAC35680045 | 35 | 68 | 45 | E | SKODA | 45 | 0.52 |
| DAC35680233/30 | 35 | 68.02 | 33 | D | Nissan Micra K10 Micra | 30 | 0.47 |
| DAC35720027 | 35 | 72 | 27 | 0.43 | CHERY QQ | 27 | 0.43 |
| DAC35720033 | 34.99 | 72 | 33 | C | Citroen,Peugeot | 33 | 0.58 |
| DAC35720034 | 34.99 | 72 | 34 | A\D | LZW7100;Honda civic1.2SF | ||
| DAC35720045 | 34.99 | 72 | 45 | C | Toyota CORULLA GTAEB6 | ||
| DAC35720228 | 35 | 72.02 | 28 | D | Citroen,Peugeot,Renault | 28 | 0.49 |
| DAC35720233/31 | 34.99 | 72.02 | 33 | D | Toyota TERCELAL20 1.3 82-, |
Applications & Vehicle Compatibility
Typical Applications:
European Models: Renault, Peugeot, Citroën, Audi, Volkswagen
American Models: Select Chrysler vehicles
Function: Critical component for wheel rotation stability, supporting combined axial/radial loads to ensure driving safety.
Conclusion
The DAC34620037 embodies China’s progress in automotive bearing technology. Its broad compatibility (mainstream vehicles), manufacturing reliability (global automotive standards), and cost efficiency (reduced assembly costs for OEMs) strengthen China’s role in the global supply chain.
If you are finding China bearing factory,finding wheel hub bearing DAC34620037,kindly contact us.
