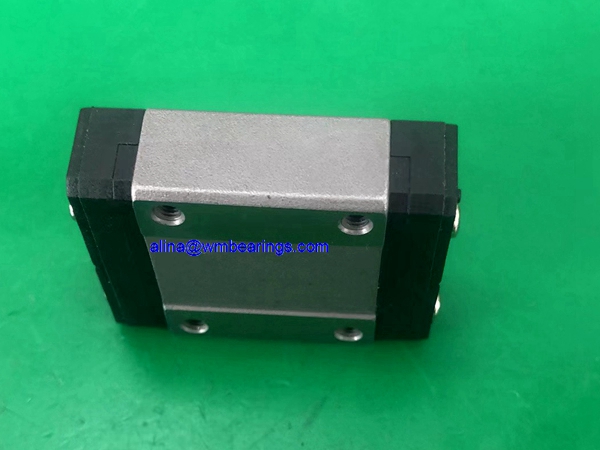

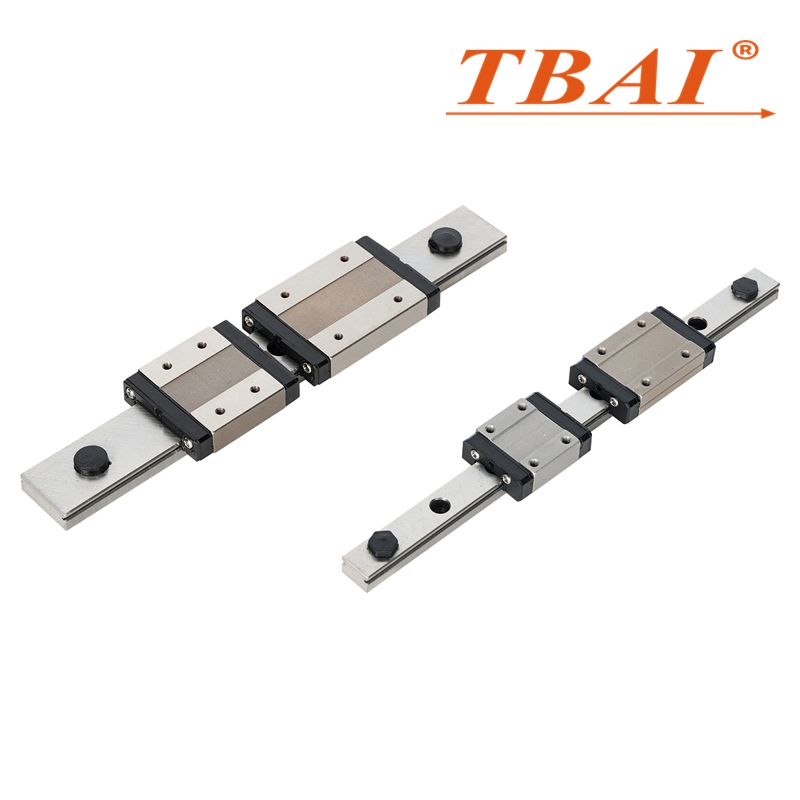

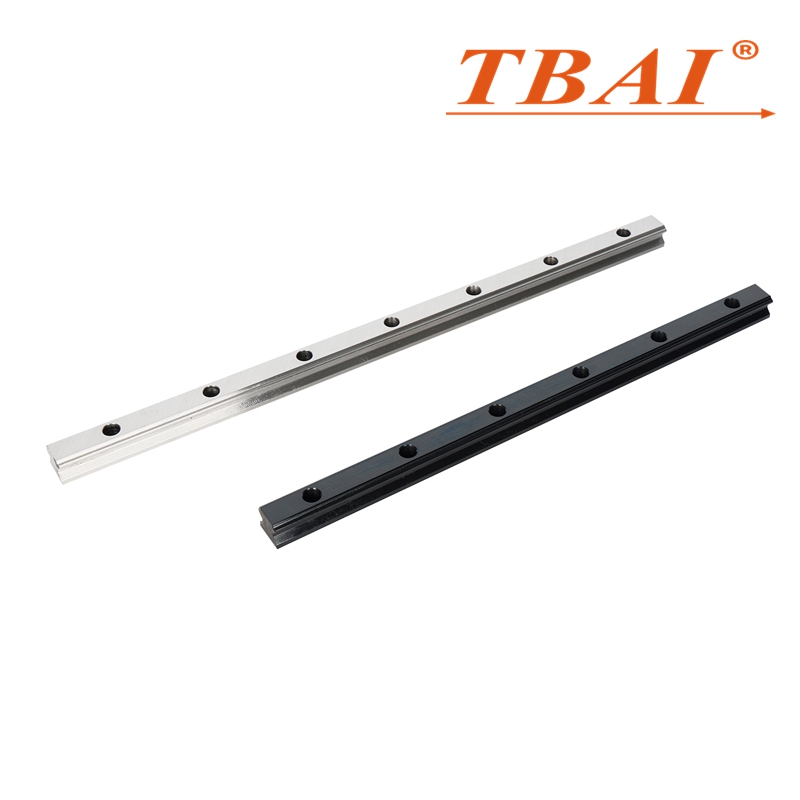

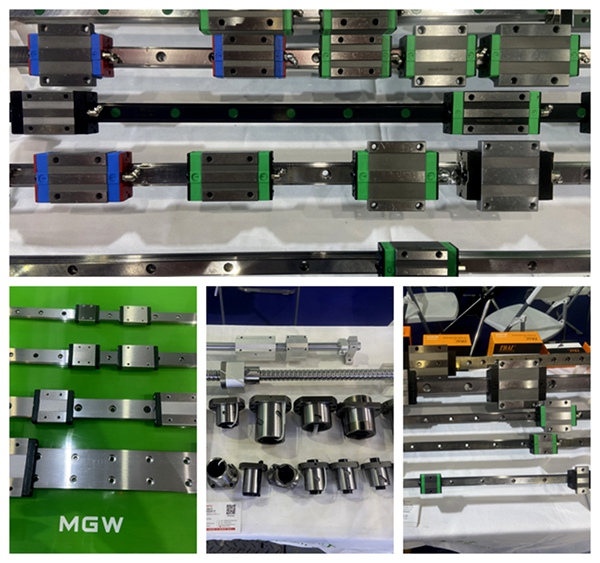

Mirco Linear Guide Block MGW9
Low Noise
High Precision
Long Service
Walk Smoothly
Gcr15 Steel Materail
Stainless Steel Materail
Product Introdution

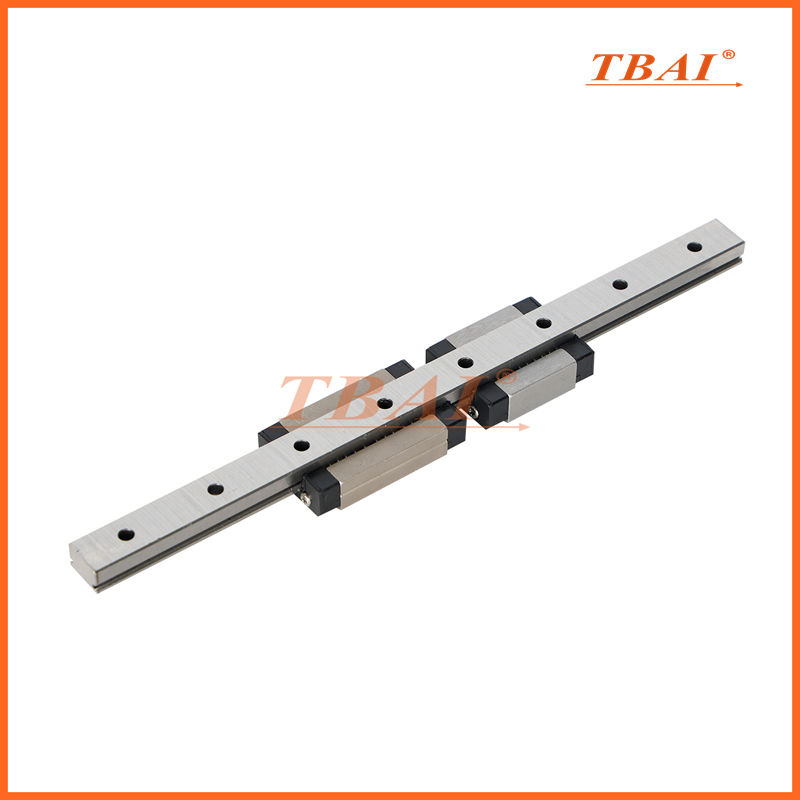

Micro Linear Guide Block MGW9 is a miniature linear guide system designed specifically for miniaturized devices and precision mechanical applications. This product adopts a compact structure to achieve high-precision linear motion in a limited space, and is widely used in fields such as semiconductor equipment, medical instruments, and office automation machinery.
Structure and Design Features
The MGW9 linear rail block adopts multiple innovative designs to ensure its excellent performance in the field of micro rail:

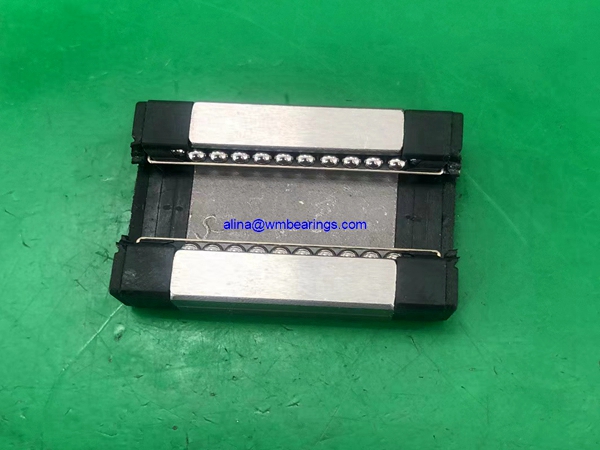

Four point contact structure design
Adopting a Gothic groove structure, the ball track has a 45 ° contact angle, which can uniformly bear loads in all directions and improve operational stability.
compact structure
The overall volume is small and lightweight, making it very suitable for use in space limited or miniaturized equipment, which helps to improve assembly efficiency and flexibility of use.
Upgrade dustproof design
Equipped with thin bottom and end sealing rings, forming a fully enclosed dust-proof structure that can be flexibly adapted according to different working conditions, improving service life and reliability.
| ITEMS | Component Size(mm) | Slider Block Size (mm) | Rail Size (mm) | Weight | ||||||||||||||||||
| H | H1 | N | W | B | B1 | C | L1 | L | G | GN | Mxl | H2 | Wr | Hr | D | h | d | P | E | Block/g | Rail kg/m | |
| MGW7C | 9 | 1.9 | 5.5 | 25 | 19 | 3 | 10 | 21 | 31.2 | ∅1.2 | M3*3 | 1.85 | 14 | 5.2 | 6 | 3.2 | 3.5 | 30 | 10 | 0.02 | 0.51 | |
| MGW7H | 19 | 30.8 | 41 | 0.029 | ||||||||||||||||||
| MGW9C | 12 | 2.9 | 6 | 30 | 21 | 4.5 | 12 | 27.5 | 39.3 | ∅1.2 | M3*3 | 2.4 | 18 | 7 | 6 | 4.5 | 3.5 | 30 | 10 | 0.04 | 0.91 | |
| MGW9H | 23 | 3.5 | 24 | 38.5 | 50.7 | 0.057 | ||||||||||||||||
| MGN12C | 14 | 3.4 | 8 | 40 | 28 | 6 | 15 | 31.3 | 46.1 | ∅1.2 | M3*3.6 | 2.8 | 24 | 8.5 | 8 | 4.5 | 4.5 | 40 | 15 | 0.071 | 1.49 | |
| MGN12H | 28 | 45.6 | 60.4 | 0.103 | ||||||||||||||||||
| MGN15C | 16 | 3.4 | 9 | 60 | 45 | 7.5 | 20 | 38 | 54.8 | 5.2 | M3 | M4*4.2 | 3.2 | 42 | 9.5 | 8 | 4.5 | 4.5 | 40 | 15 | 0.143 | 2.86 |
| MGN15H | 35 | 57 | 73.8 | 0.215 | ||||||||||||||||||
Application field
MGW9 mini linear guide is suitable for various precision equipment:
Semiconductor manufacturing equipment: including front-end semiconductor processing equipment and back-end semiconductor packaging processing equipment
Medical equipment: medical diagnostic and imaging equipment, laboratory automation equipment
Precision measuring instruments: testing and inspection equipment, precision measuring instruments
Automation equipment: robotic arms, office automation equipment, other small linear sliding devices
